6mm 3200mm Guillotine Shearing Machine Shear Cutter Machine Electrical Guillotine Shearing Machine

Send Inquiry

Product Description

⚙️

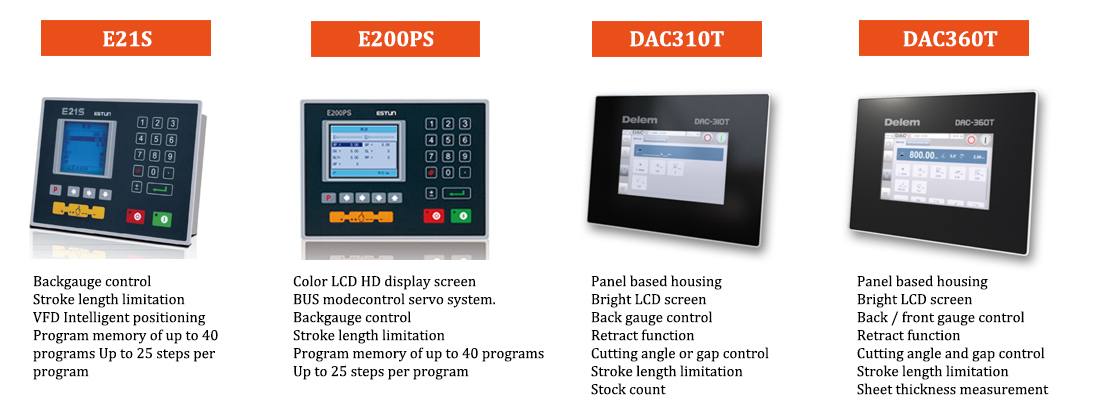

CNC CONTROL SYSTEM

📊

Technical Specifications

Hydraulic Swing Beam Shearing Machine	QC12Y-8X2500	QC12Y-8X3200	QC12Y-8X4000	QC12Y-8X6000
Cutting Thickness (mm)	8	8	8	8
Cutting Width (mm)	2500	3200	4000	6000
Cutting Angle (°)	1°30′	1°30′	1°30′	1°30′
Backgauge Range (mm)	20-600	20-600	20-600	20-800
Stroke Number (times/min)	≥11	≥8	≥7	≥5
Main Motor (kw)	11	11	11	18.5
Weight (kg)	5500	7200	8800	18000
Overall Dimensions (LxWxH in mm)	3180X1700X1700	3880X1830X1720	4680X1900X1750	6880X2260X2350

🔍

Main Functions & Features

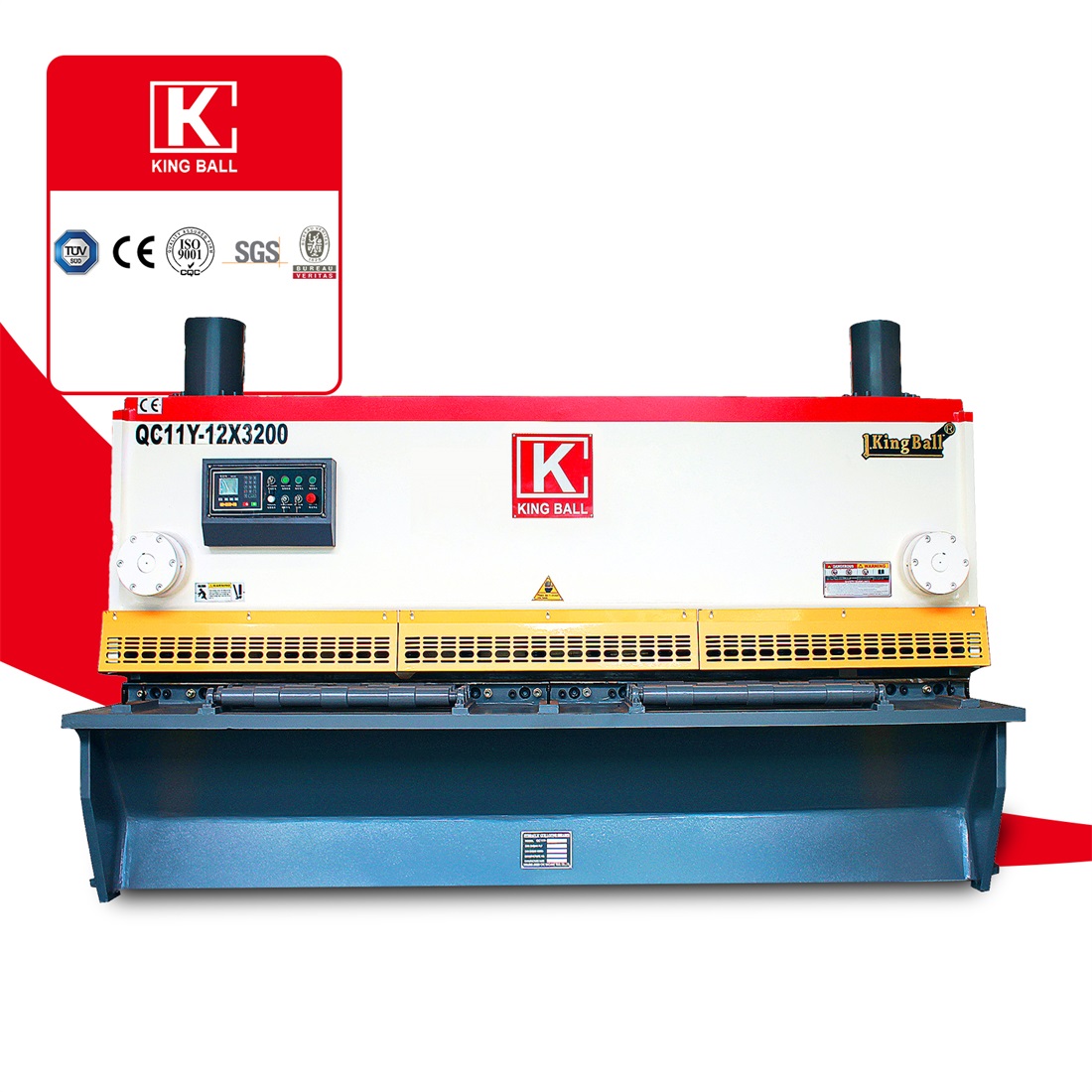

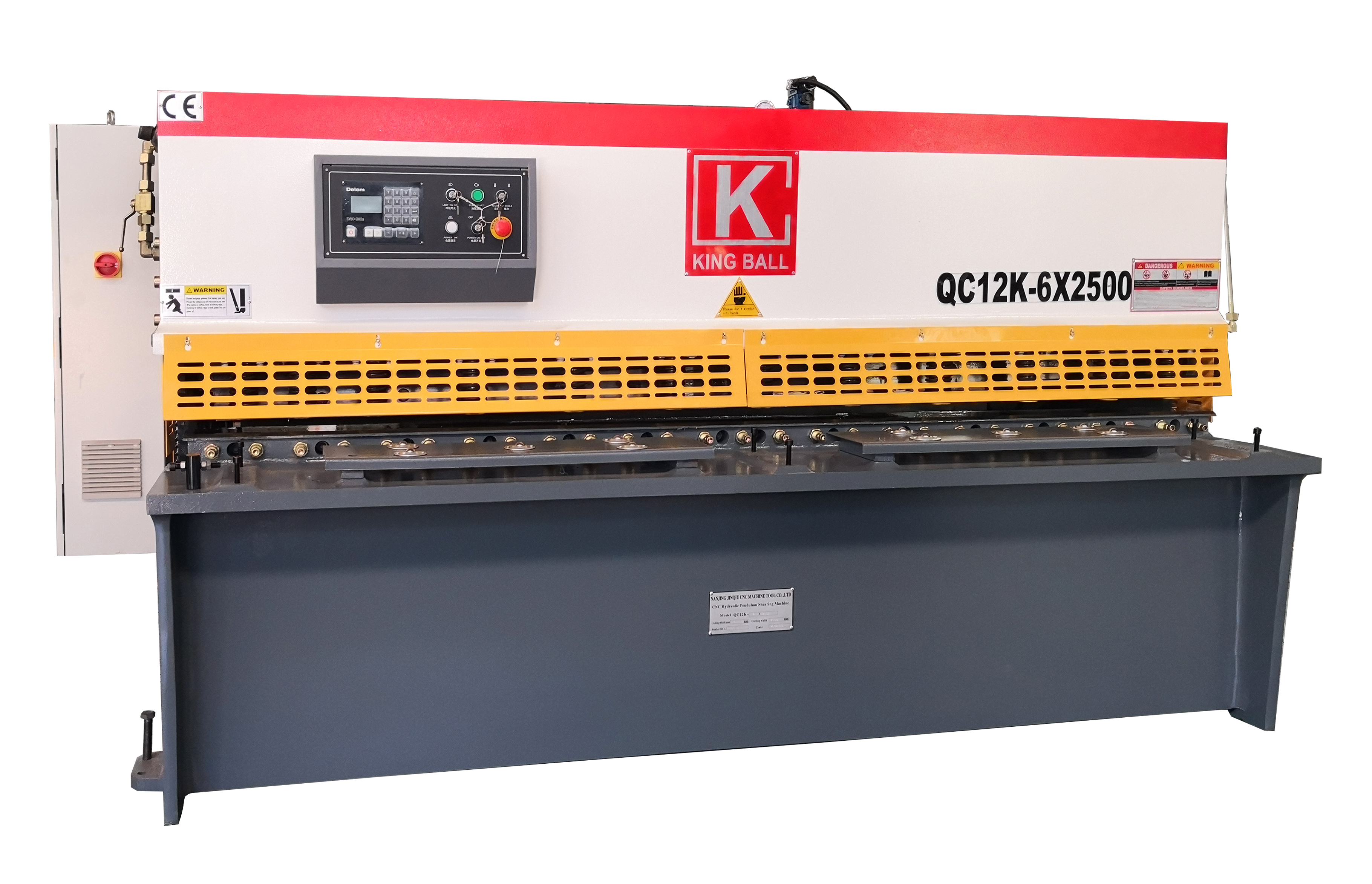

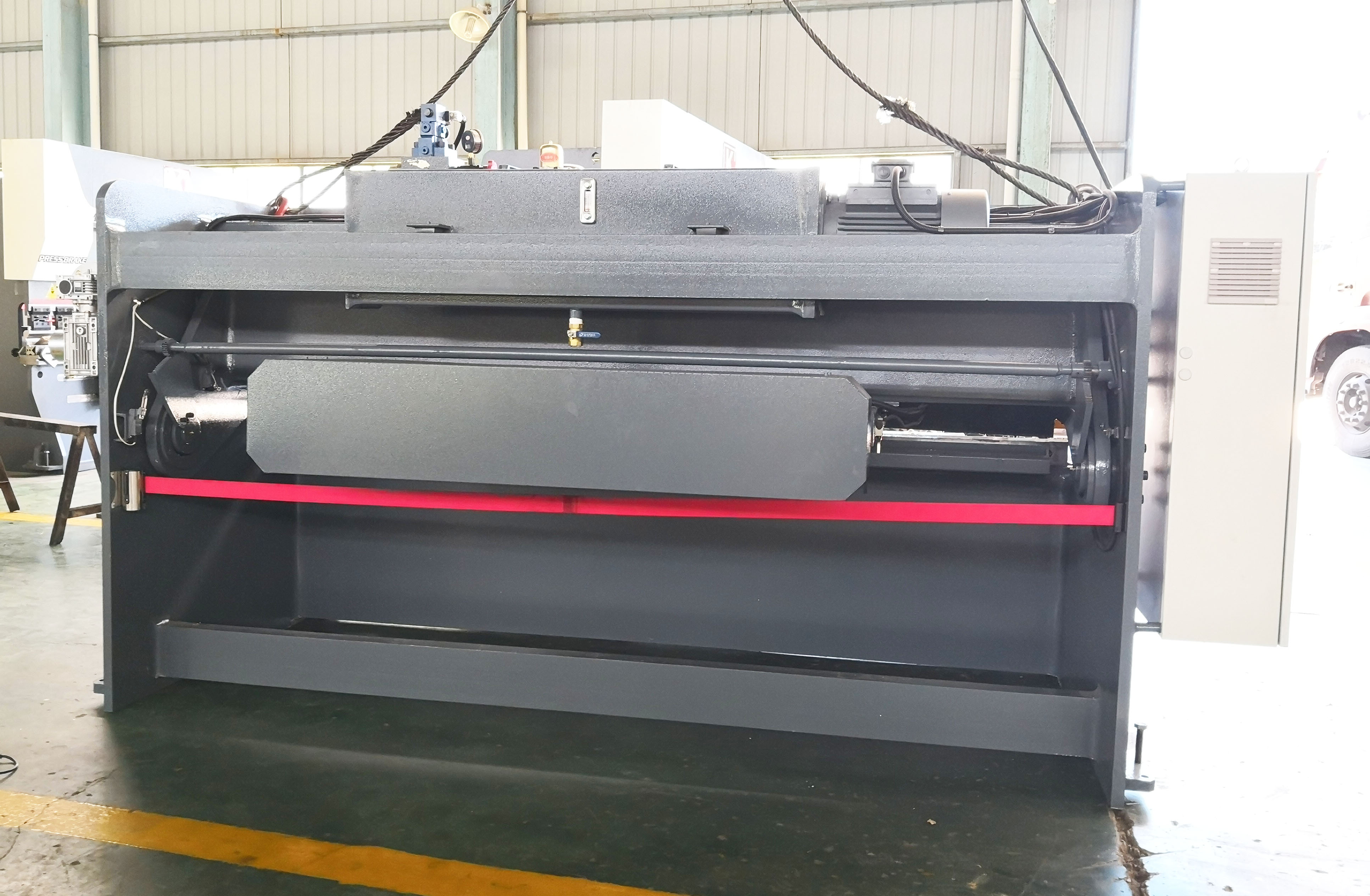

QC12Y(K) Series Hydraulic Shearing Machine

Hydraulically-driven swing beam with steel plate welded structure.
Accumulator-based pullback cylinder for steady operation.
Indicator-based adjustment of blade gap is fast and convenient.
Lighting alignment device and stepless stroke control.
Protection fence for safe operation.
Digital display for back gauge size and shearing times.

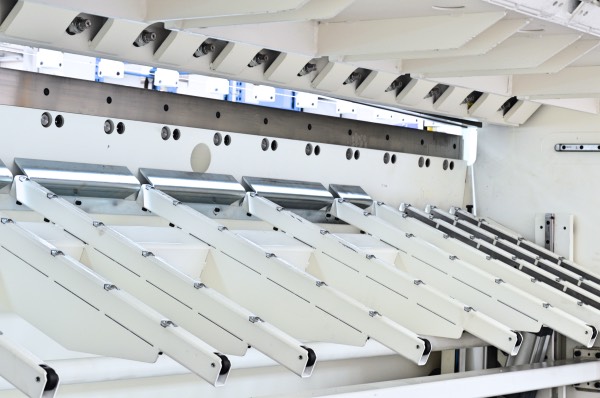

Pneumatic Sheet Support System

Monobloc Panel Type support system: Avoids hanging down of wide and thin sheets via pneumatic table support, providing more precise cuts.

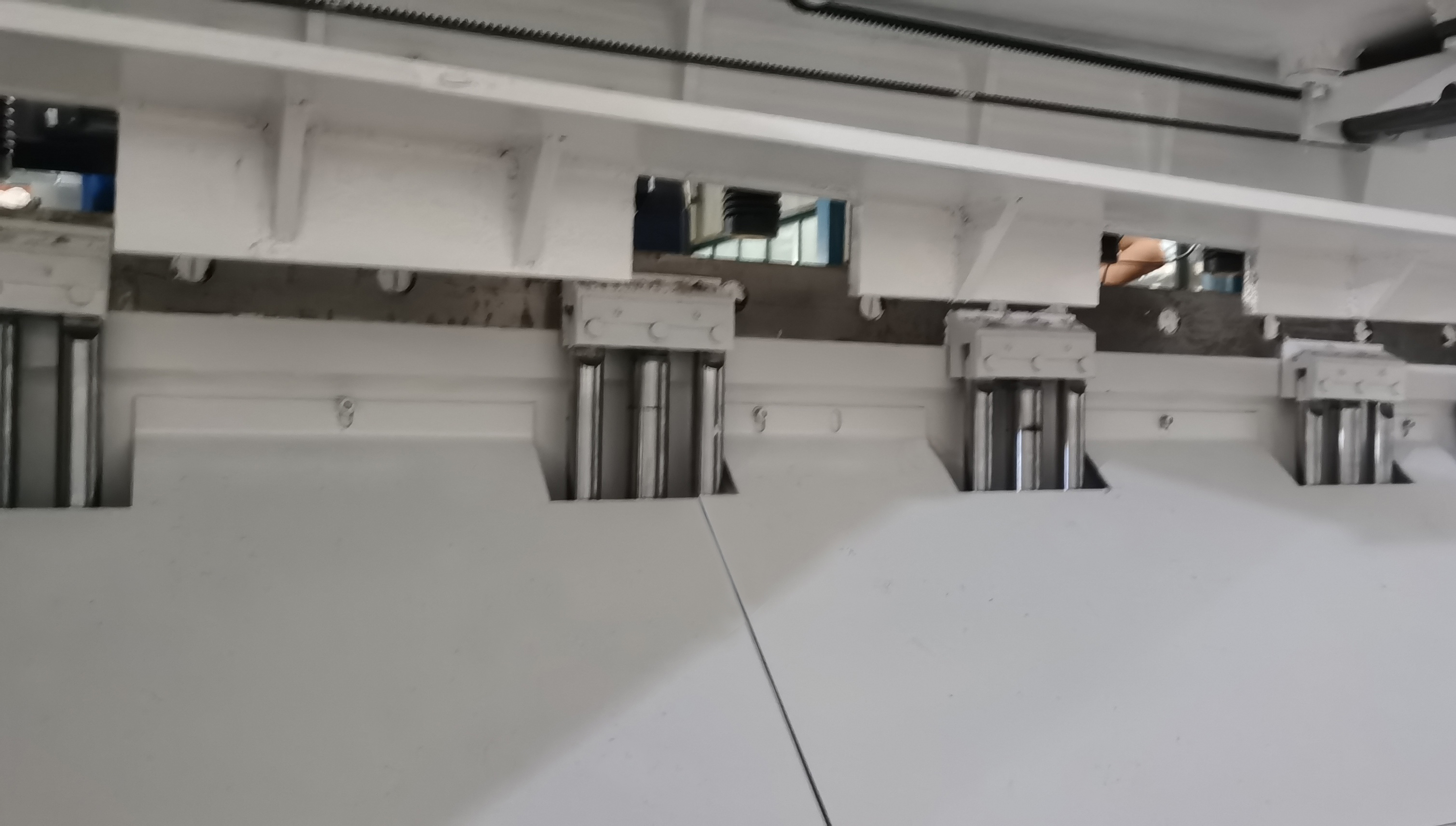

Anti-twist System

Contrasts piece warping by pushing it against the upper blade. Uses a series of hydraulic cylinders placed below the lower blade to exert counter-pressure in proportion to thickness.

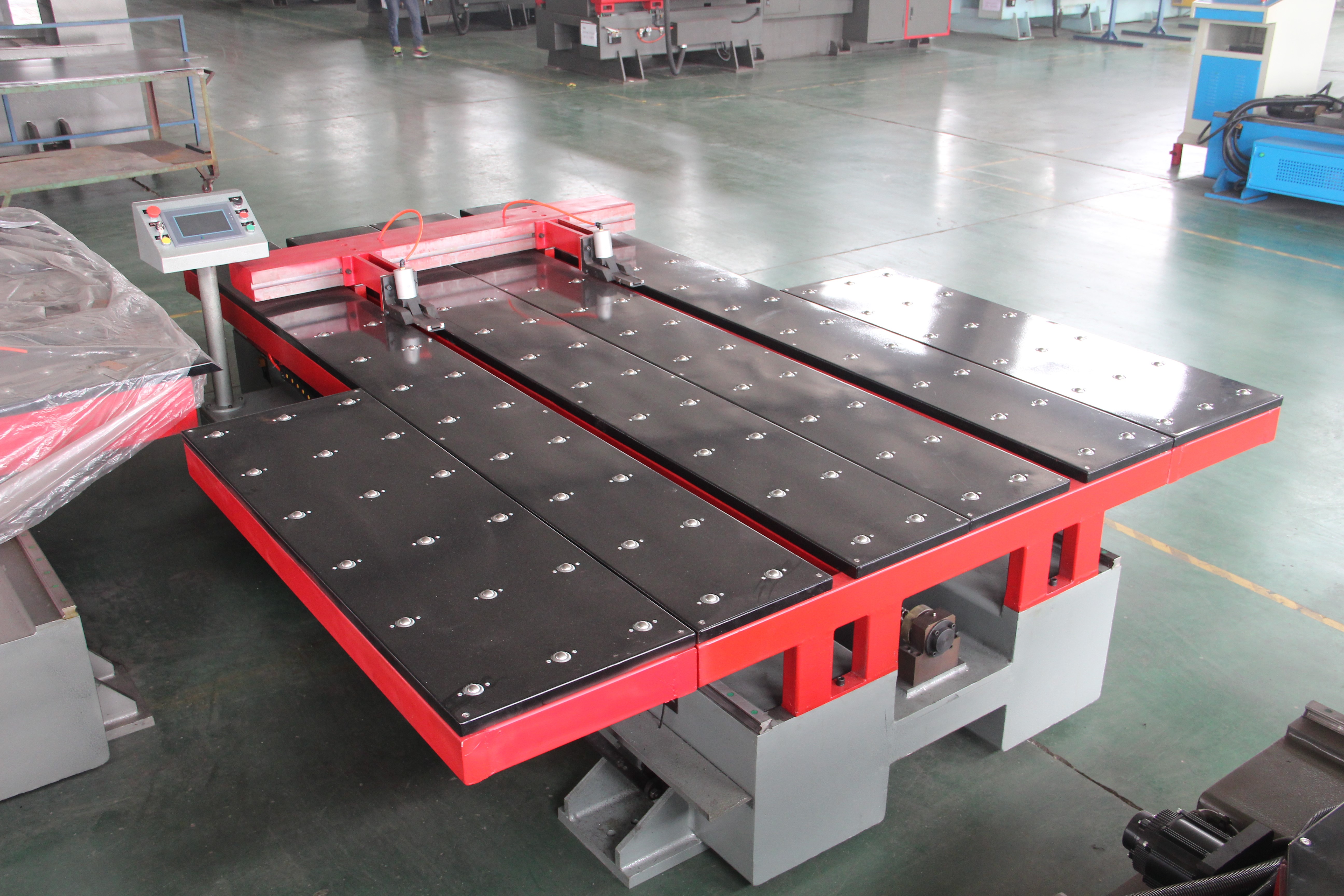

Front Feeding Table

Metal sheet feeding automatically controlled by PLC for high precision. Pneumatic clamps provide reliable supporting power and wide processing range.

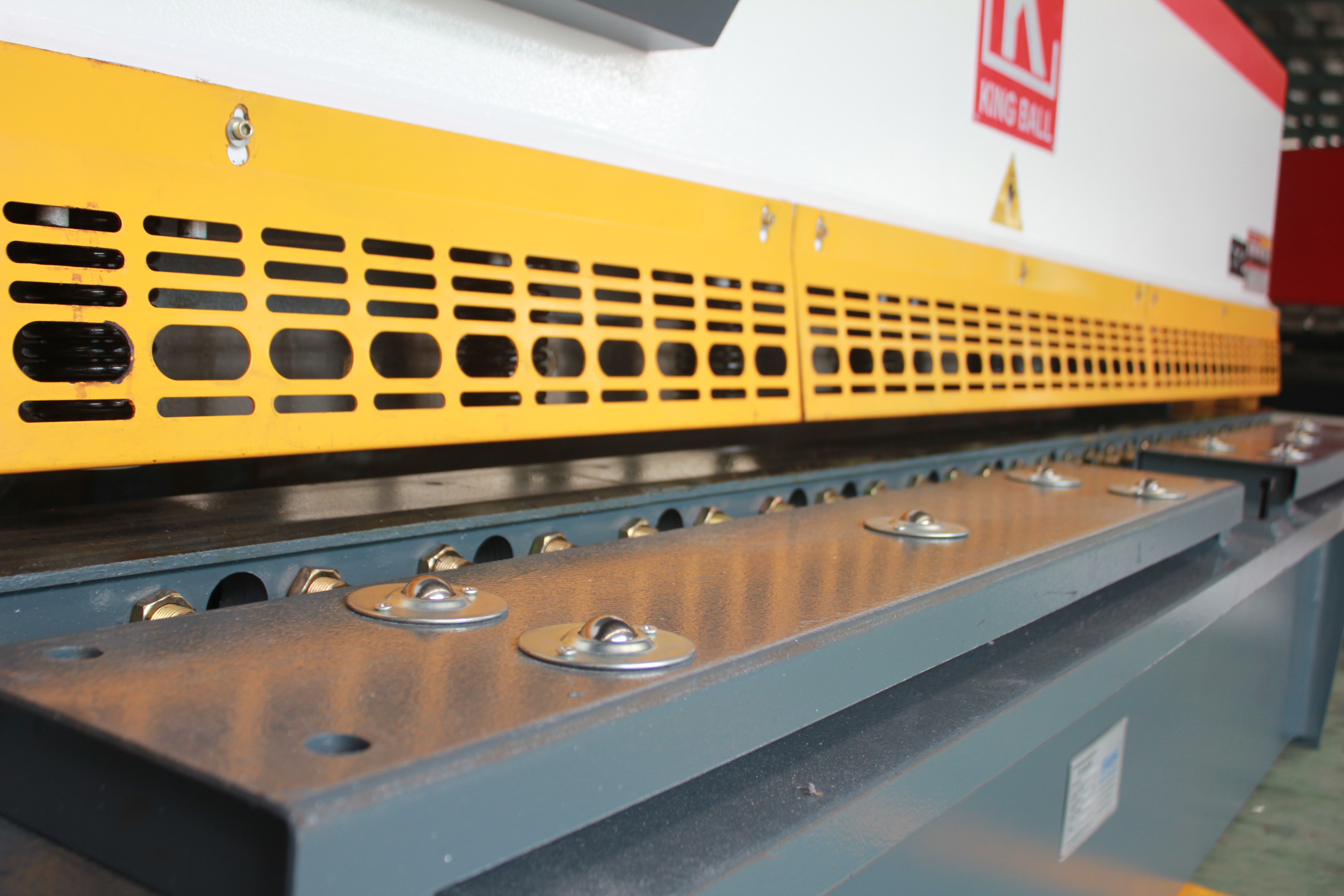

Front safety fence

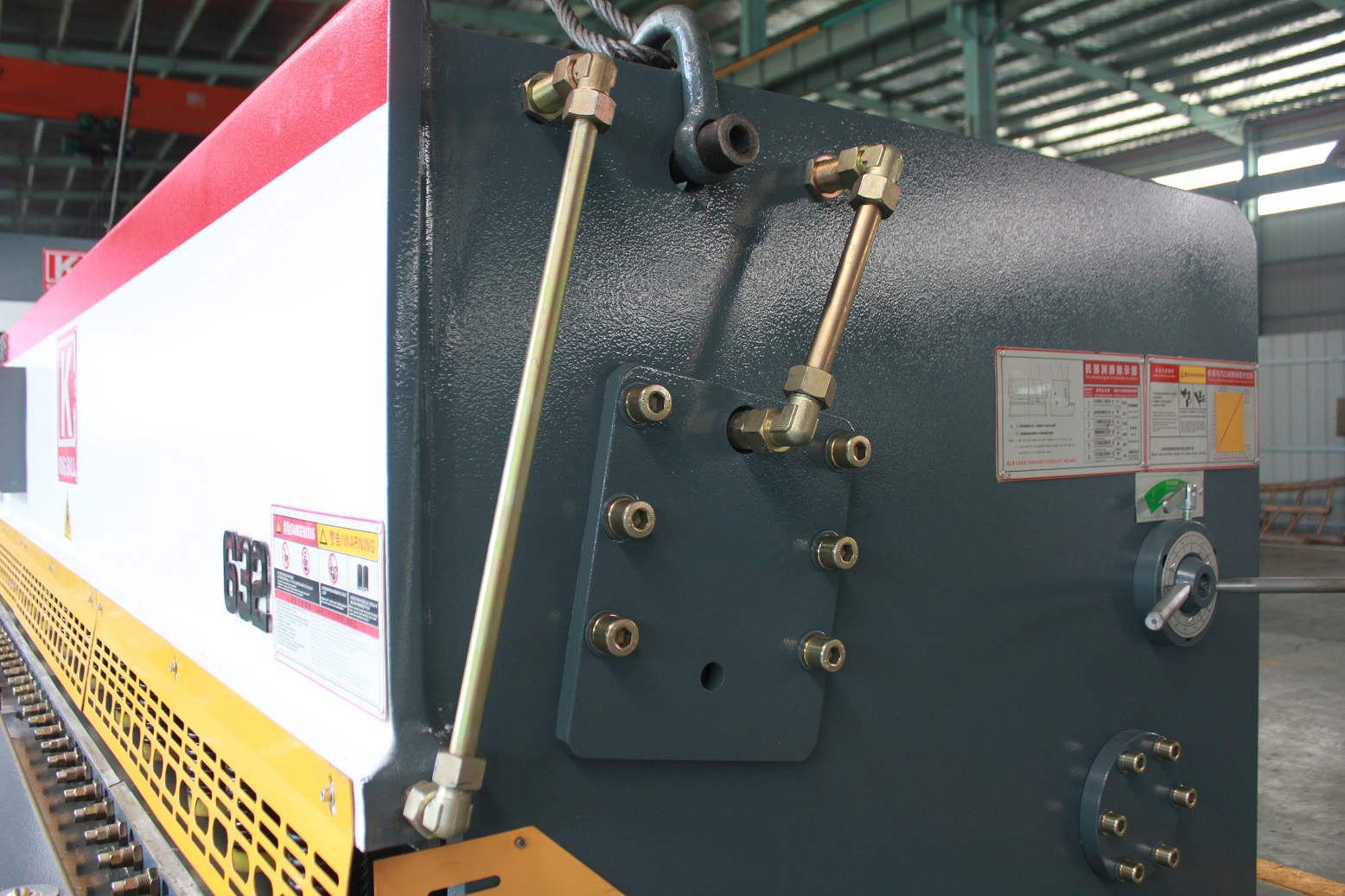

EMB tubing connector

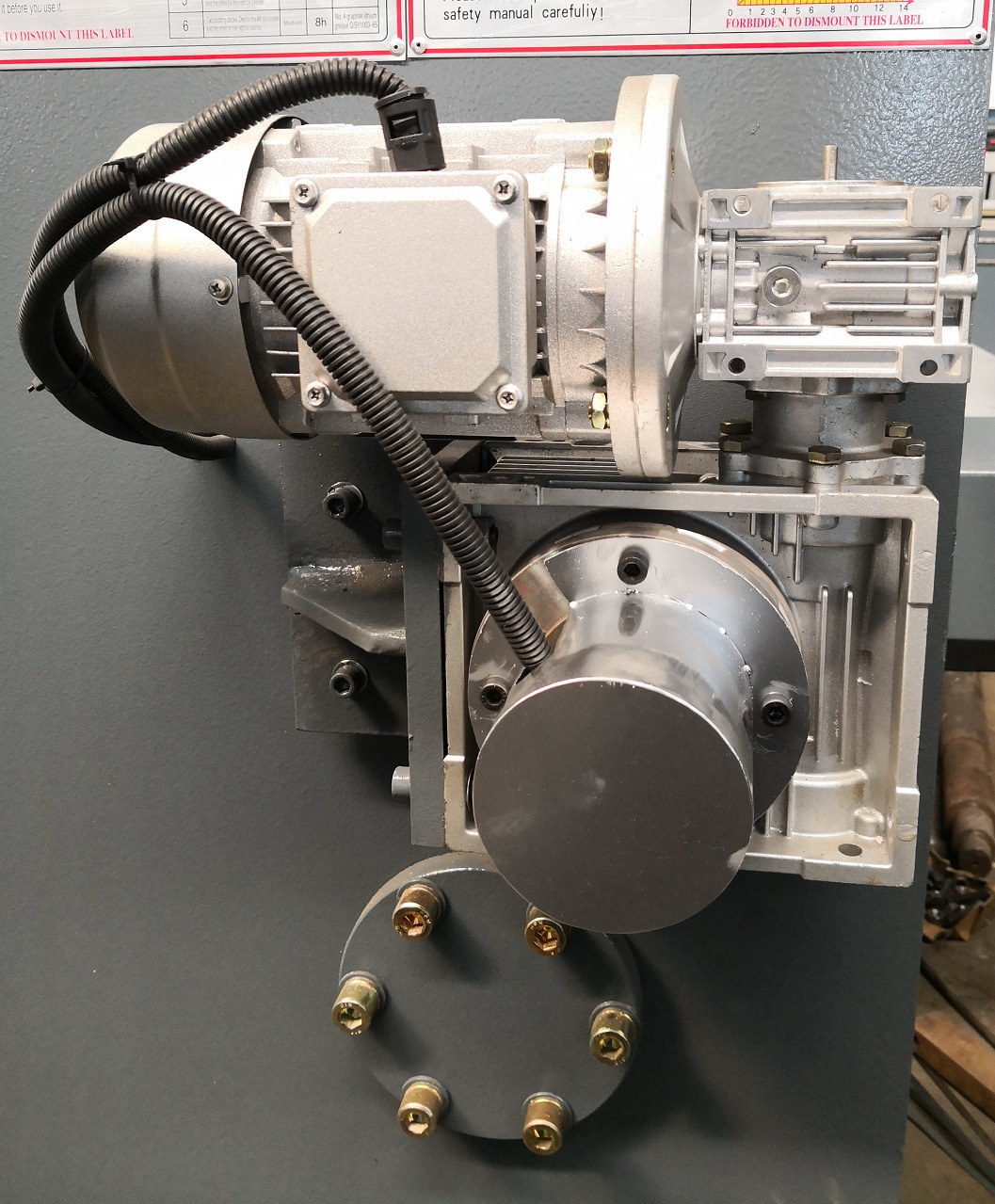

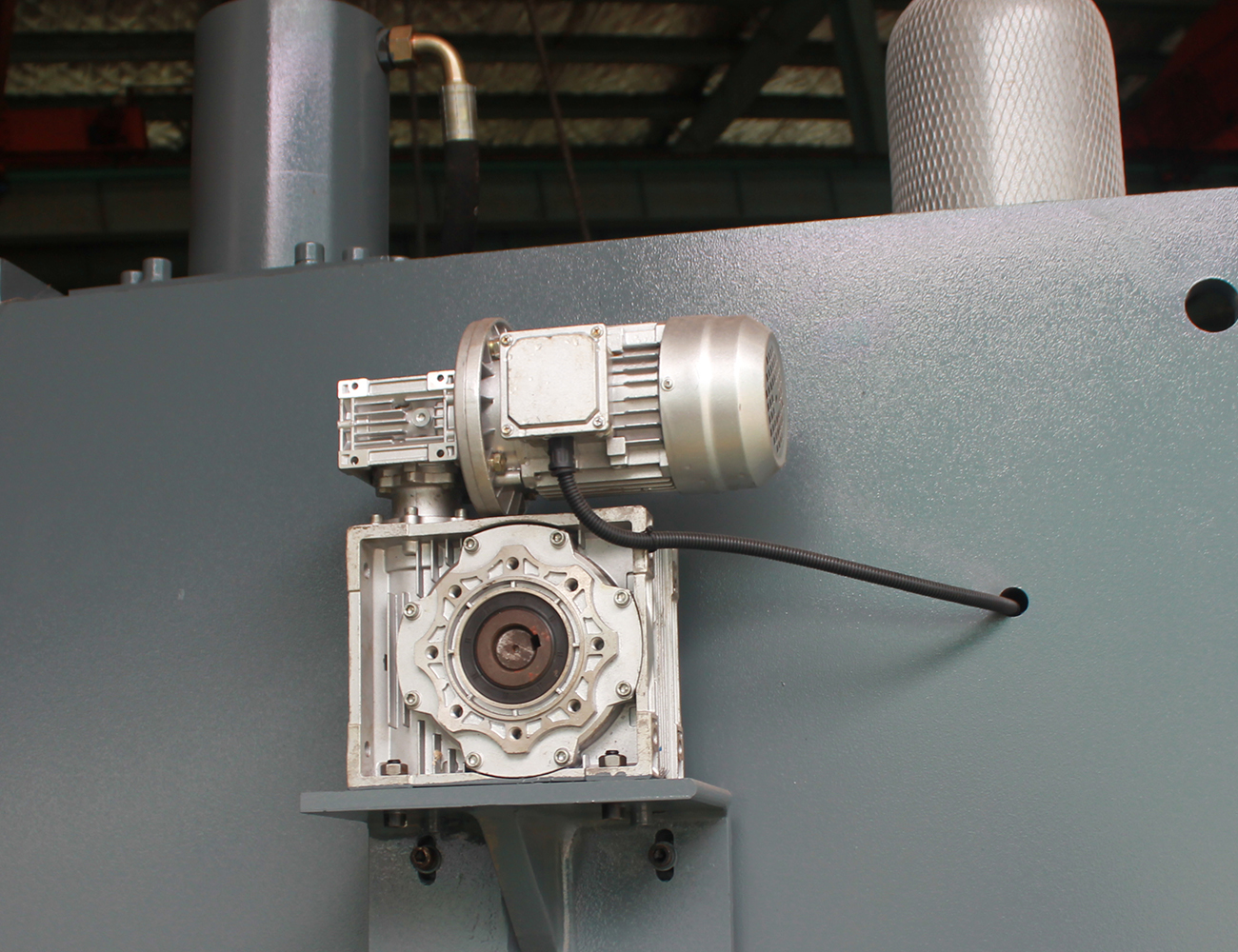

Automatic blade clearance adjustment (CNC)

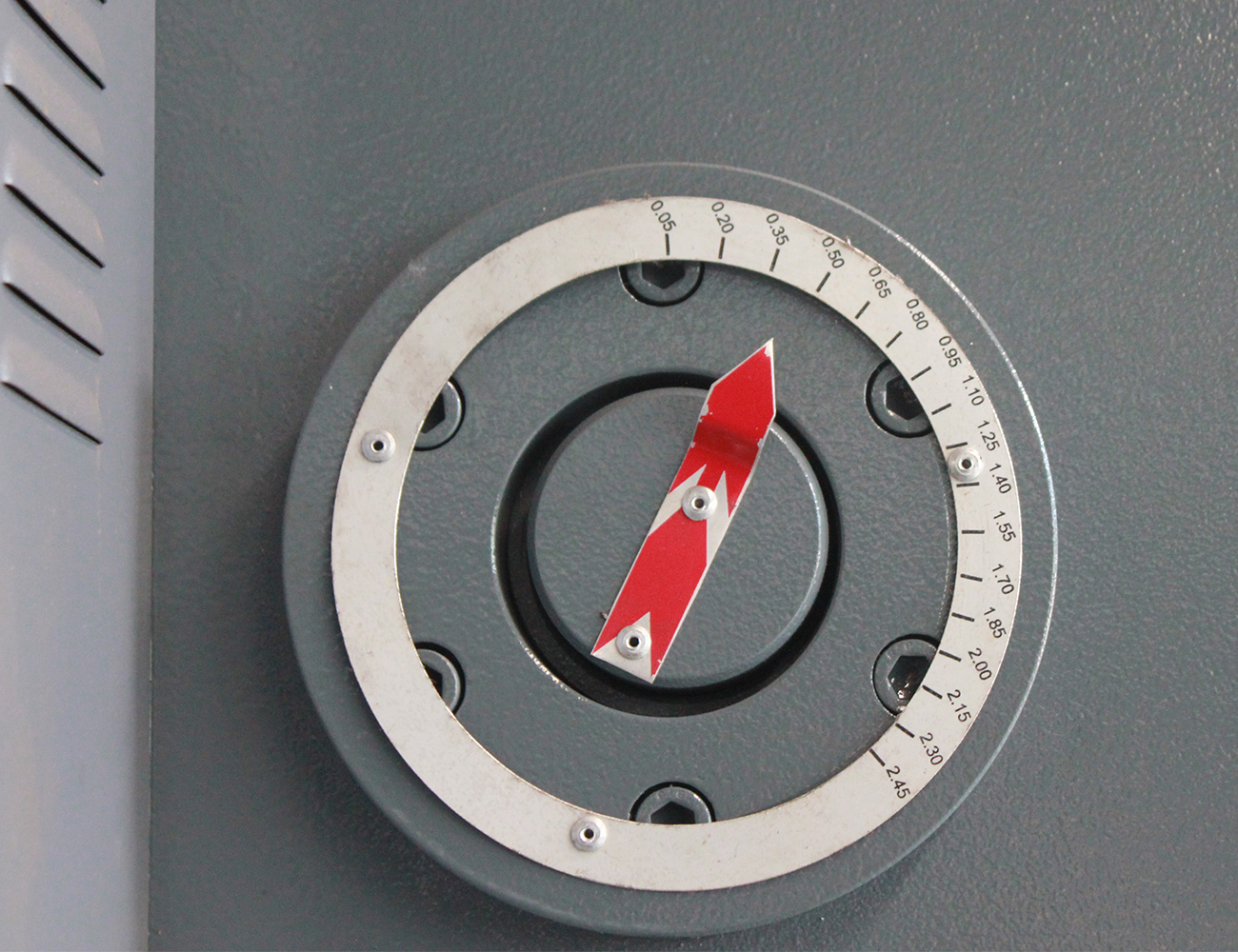

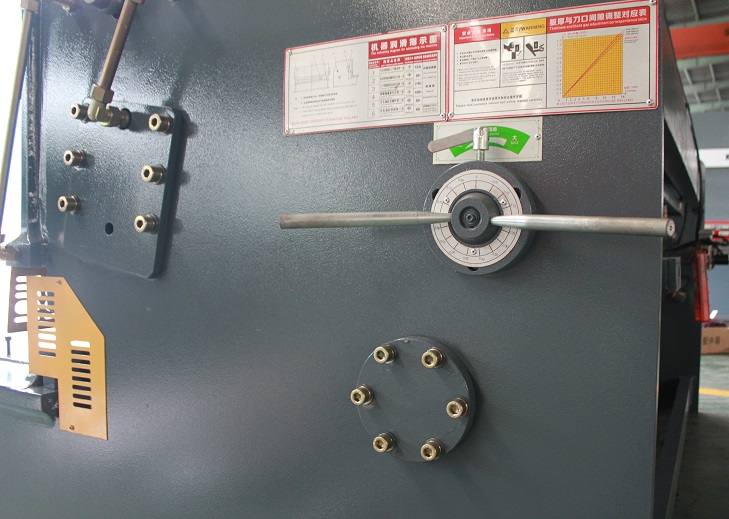

Manual blade clearance adjustment (NC)

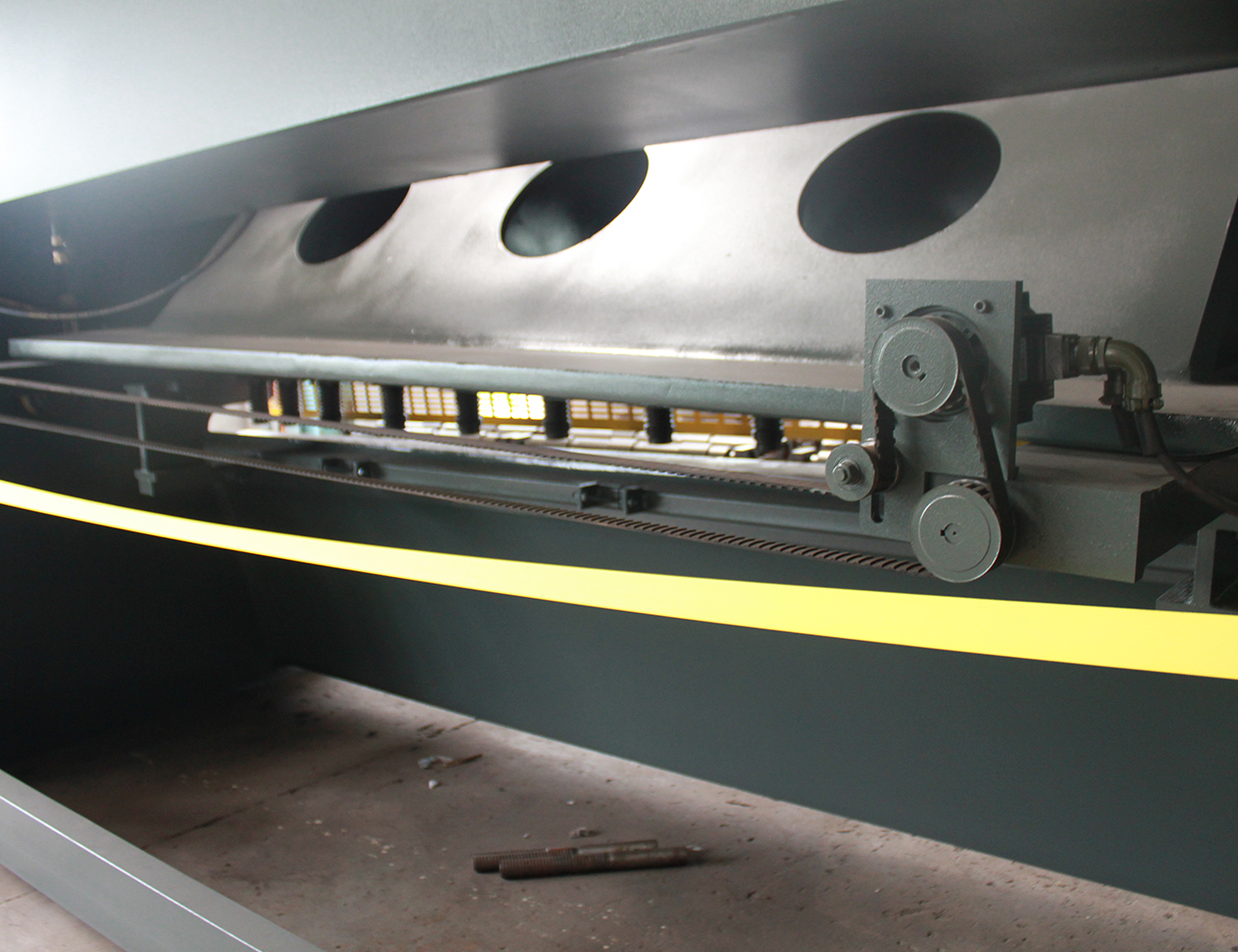

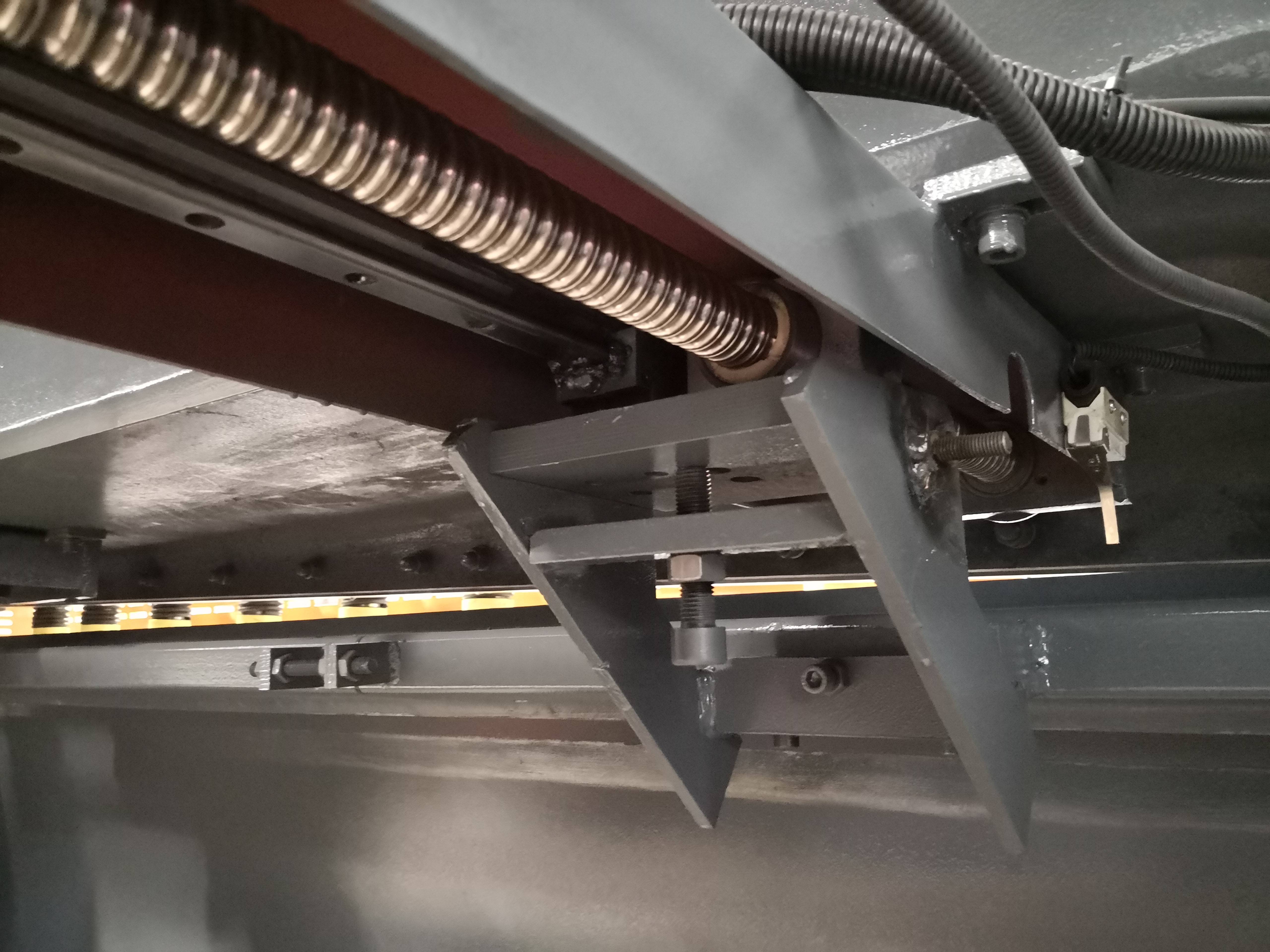

Backgauge with ball screw linear guide

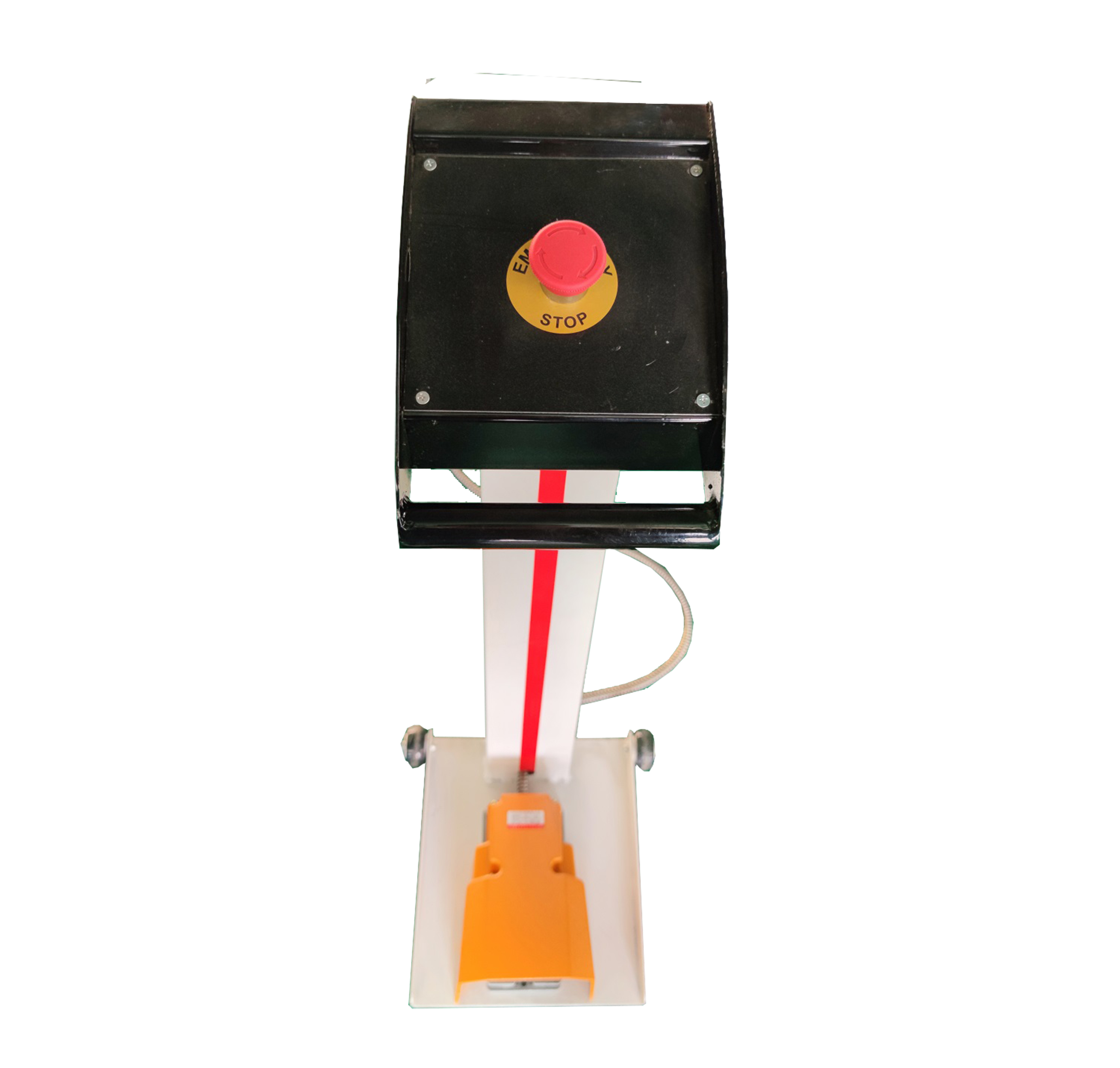

Pedal switch with emergency stop

🛠️

Our Services

Pre-sales Services

Inquiry and consulting support
Sample testing support
Visit our factory

After-sales Services

2 years warranty period
Training how to install and use the machine
Engineers available to service machinery overseas

Frequently Asked Questions

Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis/Conformance, Insurance, Origin, and other export documents where required.

What is the average lead time?

For samples, the lead time is about 7 days. For mass production, it is 20-30 days after receiving the deposit payment and final approval.

What kinds of payment methods do you accept?

You can make payment via bank account, Western Union, or PayPal: 30% deposit in advance, 70% balance against the copy of B/L, or irrevocable LC at sight.

What is the product warranty?

We warranty our materials and workmanship. Our commitment is to your satisfaction with our products, resolving all issues regardless of warranty status.

Do you guarantee safe and secure delivery?

Yes, we always use high-quality export packaging, including specialized packing for dangerous goods and validated cold storage if required.

How about the shipping fees?

The cost depends on the method chosen. Express is quickest but most expensive; seafreight is the best solution for large amounts. Exact rates require details on weight and volume.
