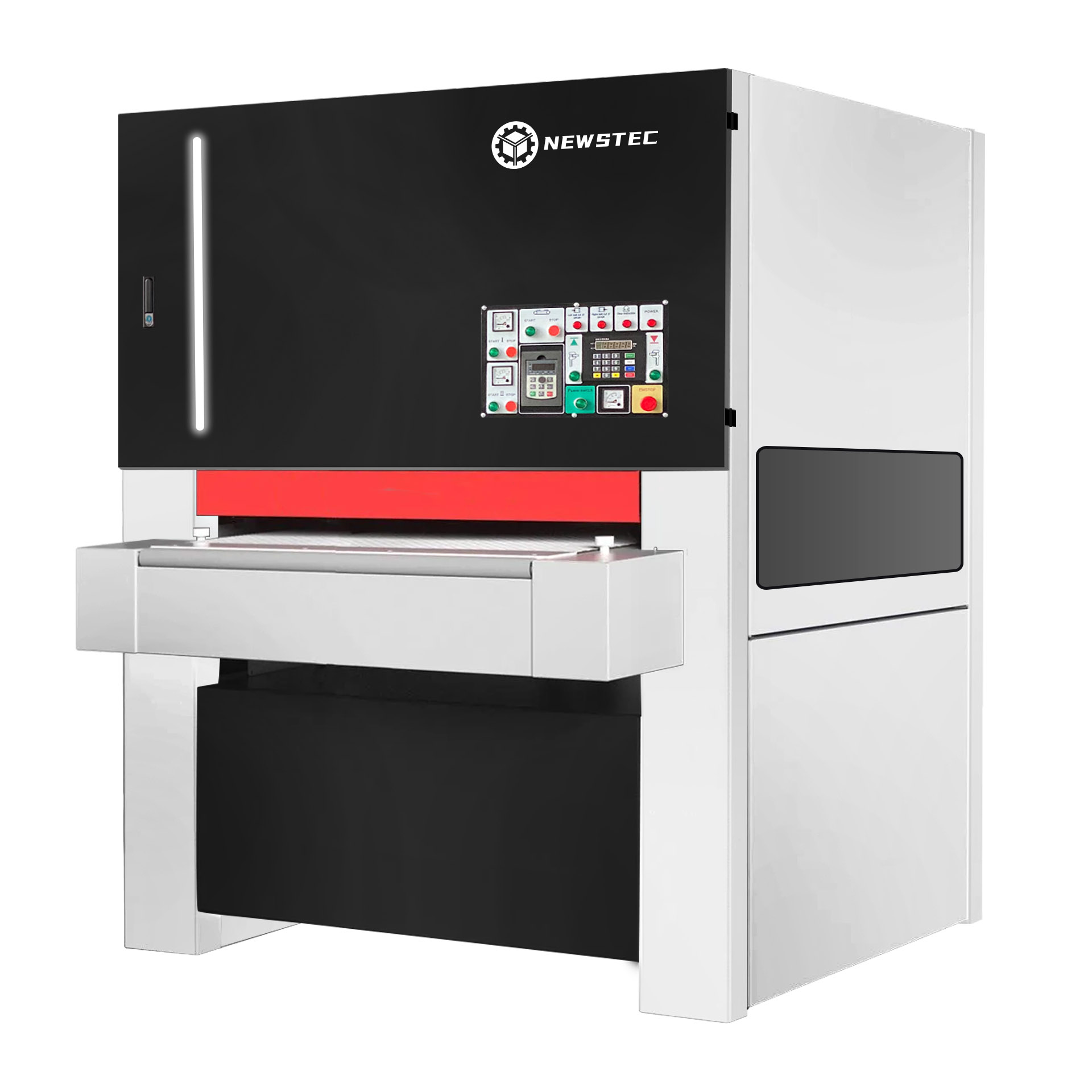

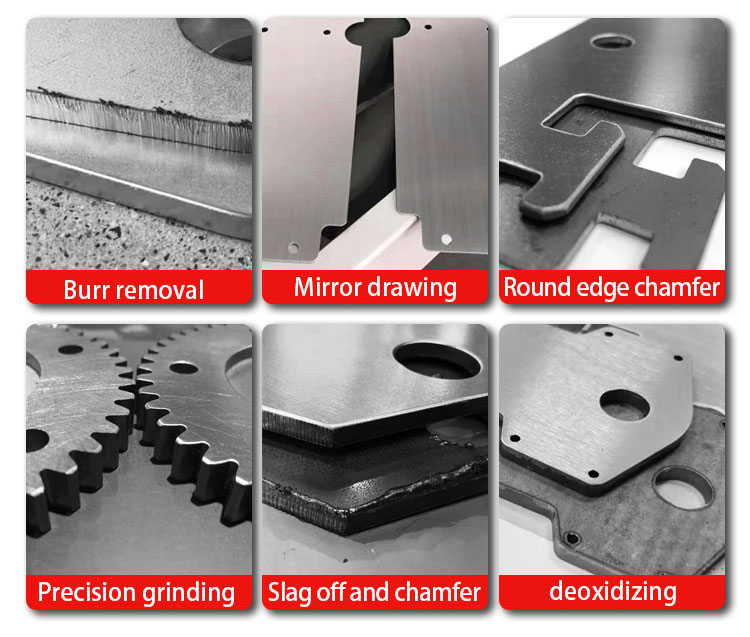

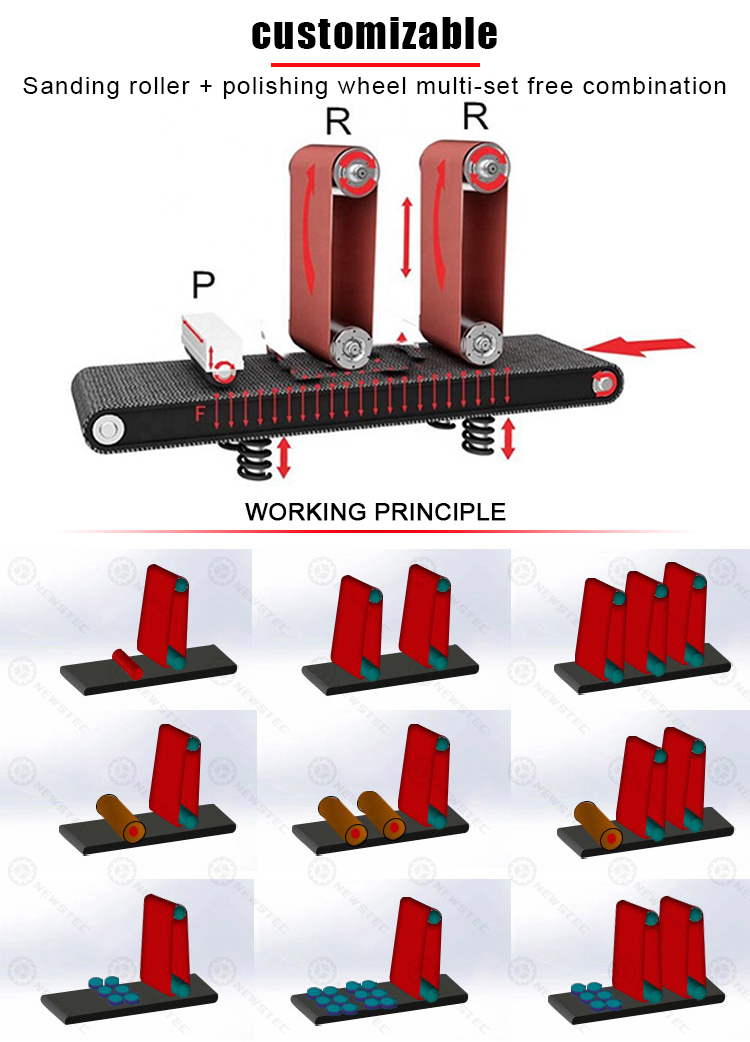

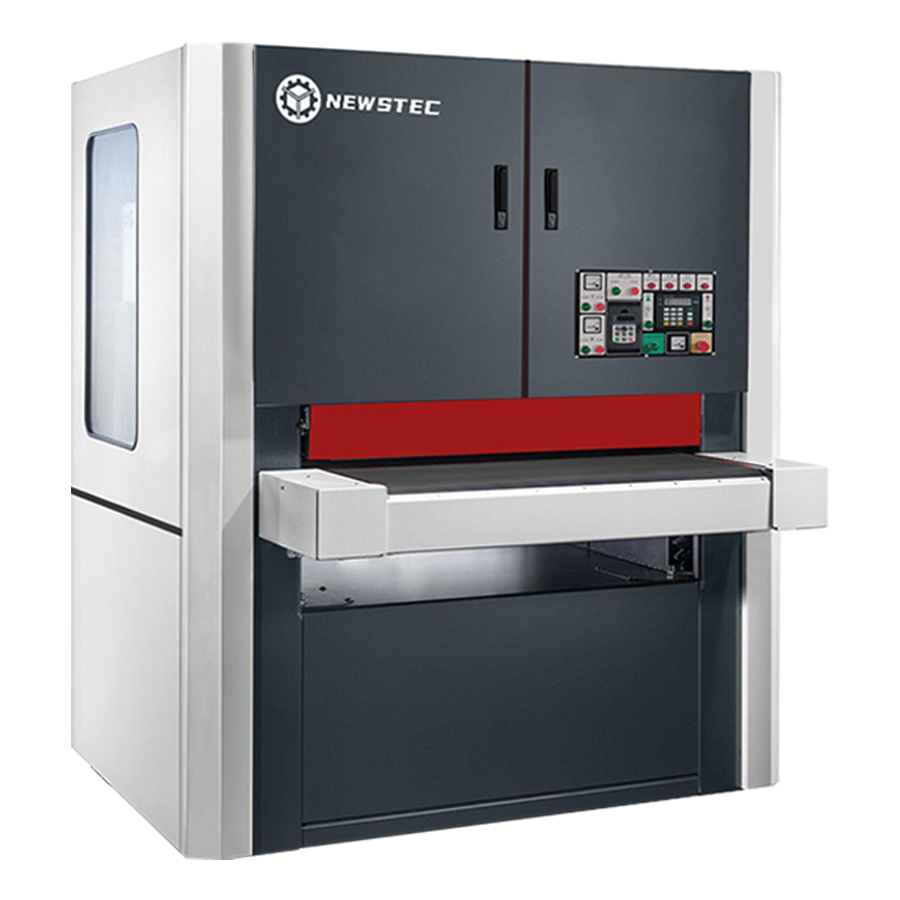

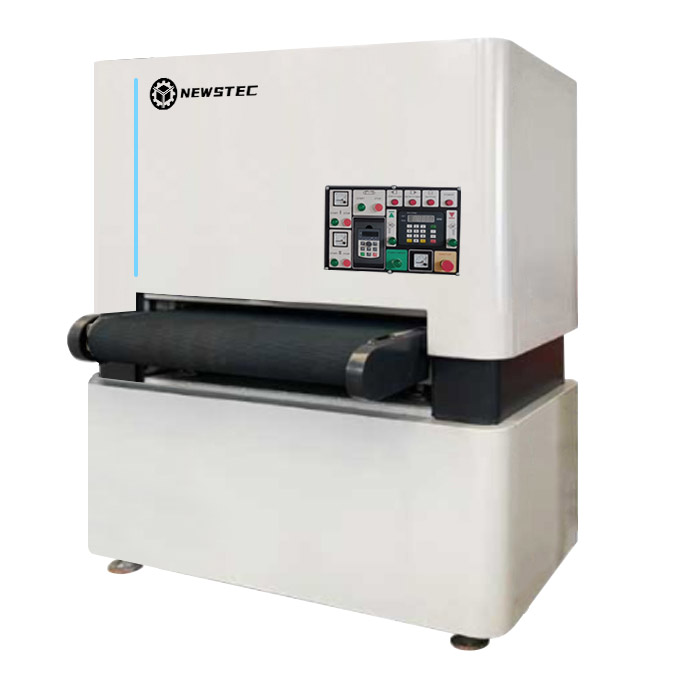

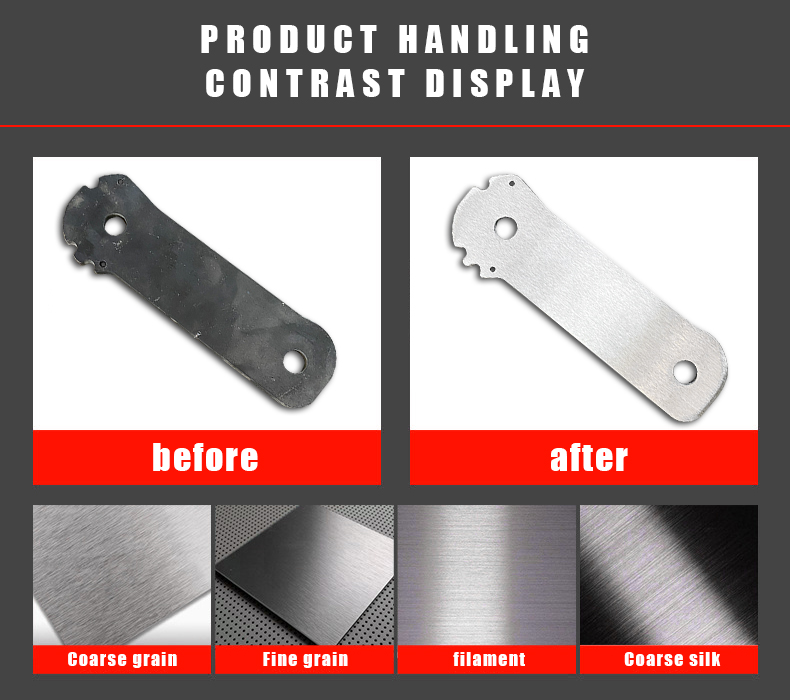

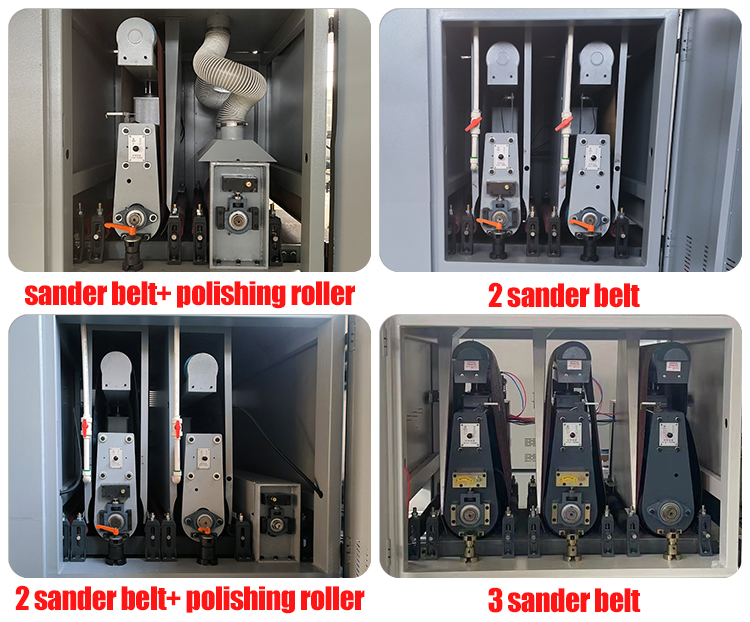

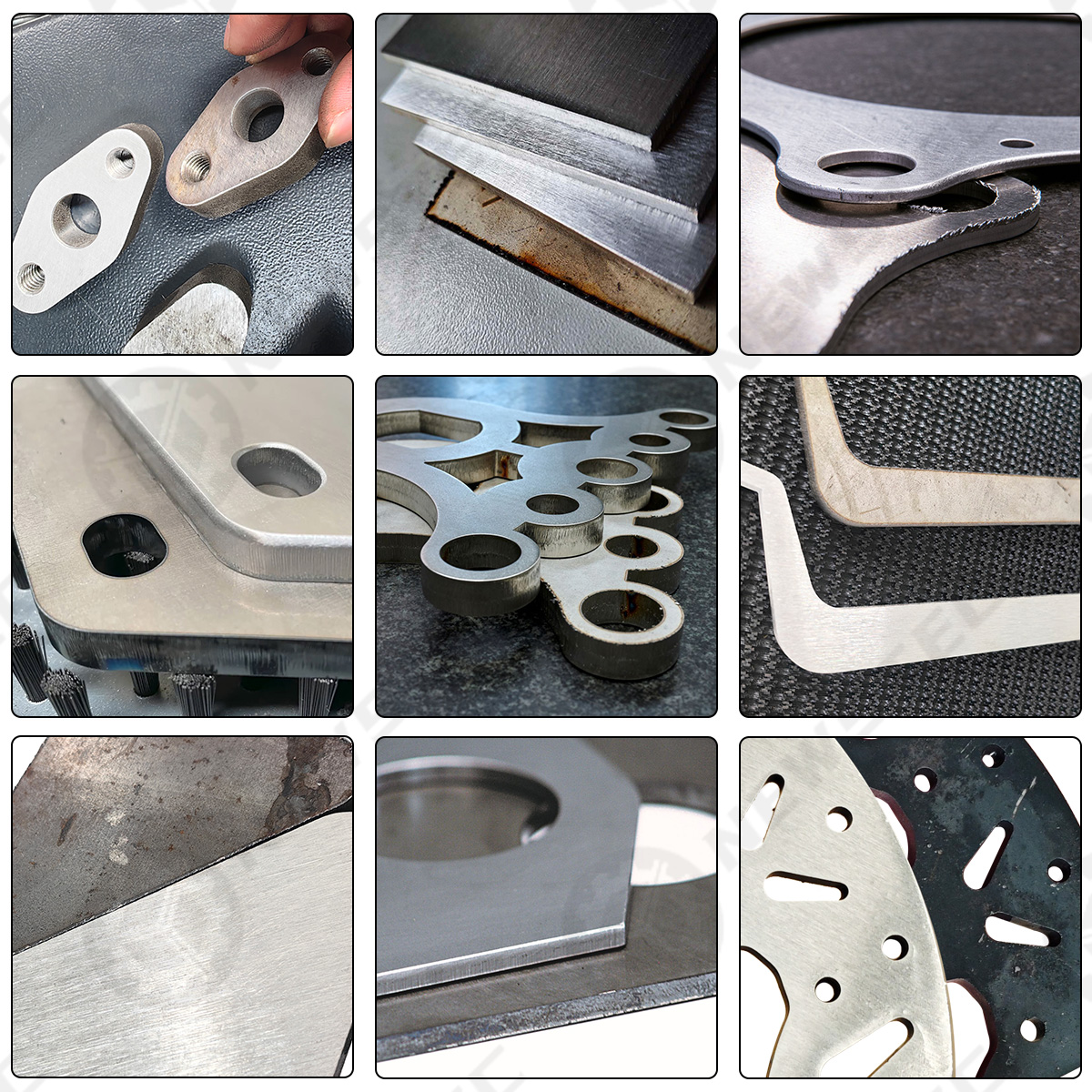

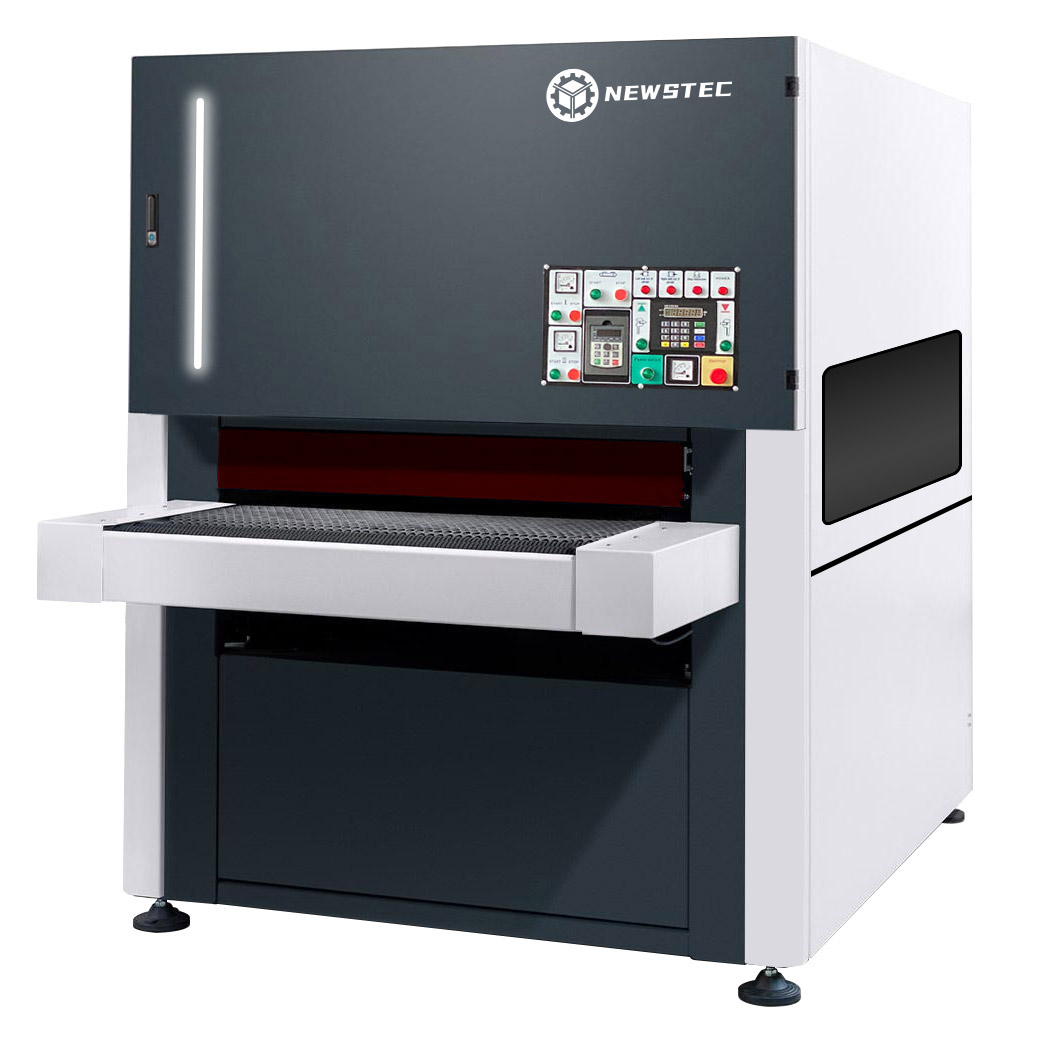

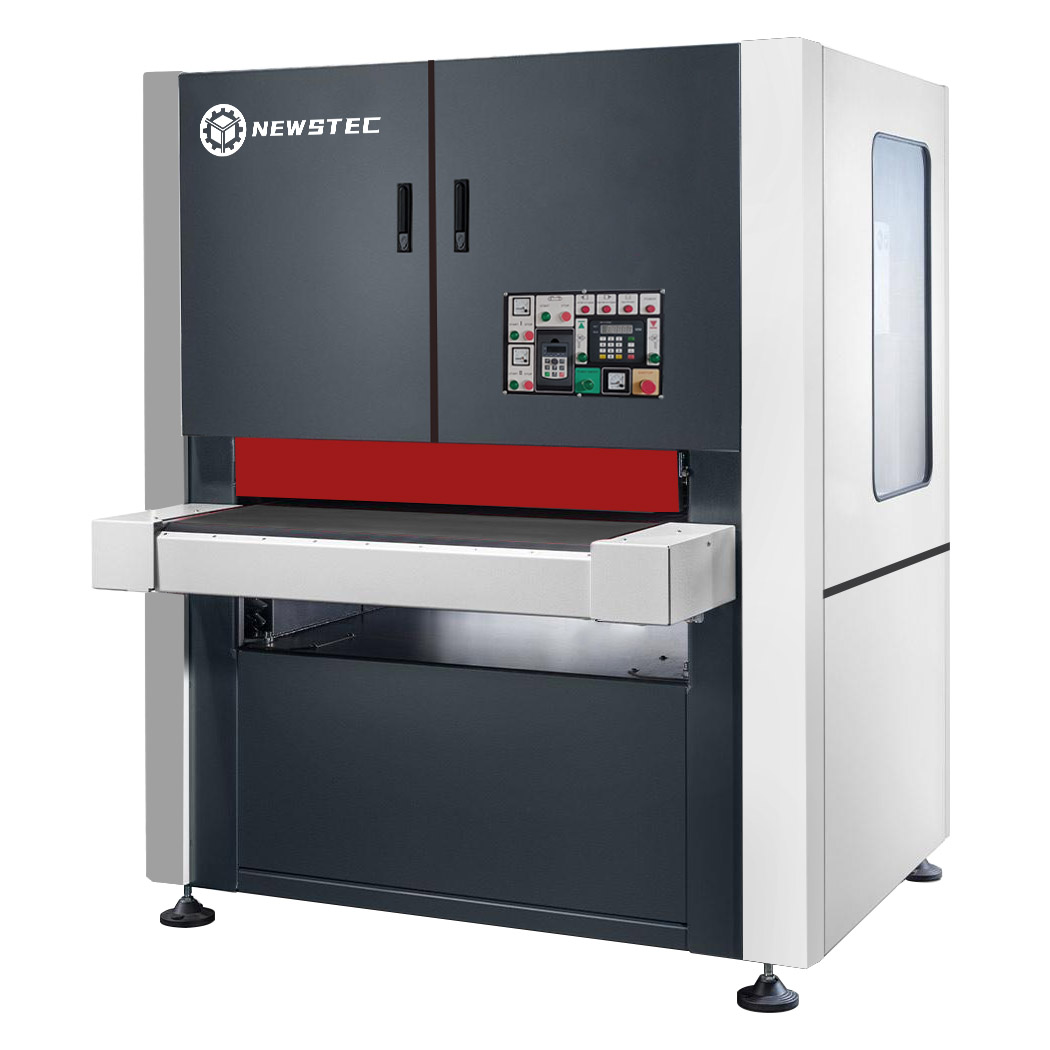

This equipment is a wet belt model with two sand frames. It is mainly used to deal with deburring, workpiece edges, and hole deburring effects. It smooths the workpiece surface, making the edges and hole contours round and polished. It is ideal for metal sheet surface wire drawing, oxidation skin removal, and slight chamfering processing. Suitable for stamping, shearing, laser cutting, and plasma cutting processes to remove burrs in a single pass, ensuring a perfect finish.
| Feature | Model 630 | Model 1000 |
|---|---|---|
| Working width(mm) | 630 | 1000 |
| Min. Working length(mm) | 300 | 300 |
| Working thickness(mm) | 0-110 | 0-110 |
| First motor(kw) | 11 | 18.5 |
| Second motor(kw) | 7.5 | 15 |
| Total Power | 19.97 | 36.55 |
| Transmission motor power(kw) | 1.1 | 2.2 |
| Abrasive belt size(mm) | 650*1900 | 1020*2200 |
| Overall dimensions(mm) | 1800*1200*2100 | 1900*1600*2100 |
| Weight(kg) | 1300 | 1800 |
Technical Advantages:
